mc::DummyInterface Class Reference

#include <interface.hpp>

Inheritance diagram for mc::DummyInterface:

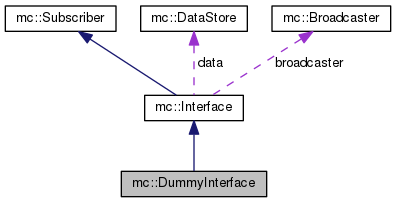

Collaboration diagram for mc::DummyInterface:

Public Member Functions
	DummyInterface (std::string s)
std::string	get_value ()
void	set_value (std::string s)
void	set_column (std::string n)
std::string	get_column ()
void	notify (Event *e)
void	broadcast ()
Public Member Functions inherited from mc::Interface
	Interface ()
virtual	~Interface ()
void	set_column (std::string n)
std::string	get_column ()
Public Member Functions inherited from mc::Subscriber
	Subscriber ()
virtual	~Subscriber ()

Additional Inherited Members
Protected Attributes inherited from mc::Interface
Broadcaster *	broadcaster
DataStore *	data
std::string	column_name

Detailed Description

An empty implementation of Interface that wraps a constant string value. Used for plugging gaps in a path in the datastore when there isn't a UI element for the value.

Constructor & Destructor Documentation

mc::DummyInterface::DummyInterface

(

std::string

s

)

Constructor sets the value of the Interface.

Parameters

s	The constant value to use.

Member Function Documentation

void mc::DummyInterface::broadcast

(

)

Generates a change event and sends it to Broadcaster.

std::string mc::DummyInterface::get_column

(

)

Get the column value.

std::string mc::DummyInterface::get_value ( )

virtual

Returns a string representation of the current value of the Interface.

Implements mc::Interface.

void mc::DummyInterface::notify ( Event *  e )

virtual

Update the Interface about change events. Used by broadcaster.

Parameters

e	The event object

Implements mc::Subscriber.

void mc::DummyInterface::set_column

(

std::string

n

)

Set the column name that this input maps to.

Parameters

n	The name of the column

void mc::DummyInterface::set_value ( std::string  s )

virtual

Sets the current value of the interface.

Implements mc::Interface.

---

The documentation for this class was generated from the following files:

• inc/interface.hpp
• src/interface.cpp
